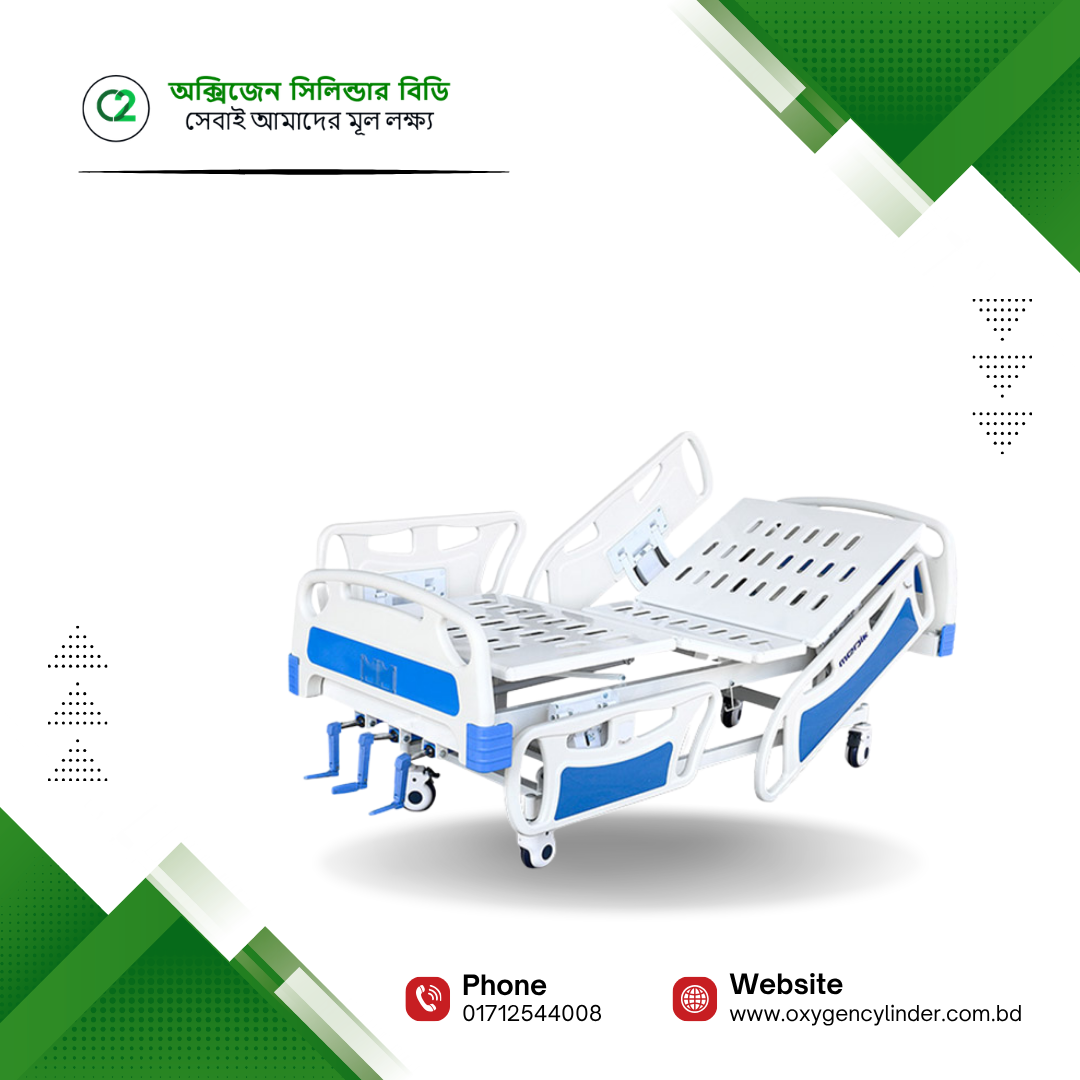

Manual 3-Function ICU Hospital Bed

The Manual Three-Function ICU Hospital Bed is designed to support patient positioning, nursing care and recovery without depending on electricity. Three independent hand cranks allow caregivers to adjust the backrest, knee section and overall bed height according to the patient’s care requirements.

The adjustable backrest supports comfortable sitting, feeding, reading and clinical observation. The knee-rest adjustment provides additional leg support, while the height function helps caregivers position the bed at a convenient level for treatment, personal care and patient transfers.

Its strong steel frame, safety side rails, lockable castor wheels and ICU-compatible accessory provisions make it suitable for hospitals, clinics, nursing facilities and advanced home-care environments throughout Bangladesh.

Key Features

• Three independent manual adjustment functions
• Adjustable backrest section
• Adjustable knee or leg-rest section
• Adjustable overall bed height
• Smooth manual-crank operation
• Folding crank handles for convenient storage
• Operates without electricity
• Strong, medical-grade steel frame
• Durable powder-coated finish
• ABS or perforated steel mattress platform
• Detachable headboard and footboard
• Foldable safety side rails
• Heavy-duty castor wheels
• Central or individual wheel-locking system
• IV-pole mounting provision
• Drainage-bag hooks
• Protective corner bumpers on compatible models
• Easy-to-clean construction
• Suitable for intensive and long-term patient care

Three Manual Functions

1. Backrest Adjustment: Raises or lowers the upper-body section for sitting, eating, reading, examination and respiratory positioning.
2. Knee-Rest Adjustment: Elevates or lowers the knee and leg section to support patient positioning and comfort.
3. Height Adjustment: Raises or lowers the complete mattress platform to assist caregivers and make patient transfers more convenient.

Additional Information

• Product Name: Manual Three-Function ICU Hospital Bed
• Product Type: Three-Crank Adjustable Patient Bed
• Number of Functions: Three
• Operating System: Manual crank mechanism
• Primary Adjustments: Backrest, knee rest and overall height
• Frame Material: Heavy-duty mild steel
• Surface Finish: Epoxy or powder-coated finish
• Mattress Platform: ABS panels or perforated steel sections
• Headboard and Footboard: Detachable ABS, steel or composite panels
• Side Rails: Foldable ABS or aluminium safety rails
• Wheels: Four heavy-duty castor wheels
• Braking System: Individual or central locking, depending on the model
• Typical Overall Length: Approximately 2,050–2,200 mm
• Typical Overall Width: Approximately 900–1,000 mm
• Typical Height Range: Approximately 370–800 mm
• Typical Backrest Angle: Approximately 0–75°
• Typical Knee-Rest Angle: Approximately 0–40°
• Typical Safe Working Load: Approximately 175–250 kg
• Power Required: No
• Recommended Uses: ICU, hospital, clinic, rehabilitation centre, nursing facility and home care
• Mattress: Included or sold separately, depending on the package
• IV Pole: Included or optional
• Country of Origin: Varies by manufacturer
• Availability: Subject to current stock in Bangladesh
• Warranty: Confirm the frame, crank and accessory warranty with the seller
• Price: Contact the seller for the latest price and delivery charge

Common Package Contents

The package may include:

• Manual three-function ICU hospital bed
• Medical mattress
• IV pole
• Drainage-bag hooks
• Detachable headboard and footboard
• Safety side rails
• User or assembly instructions

Benefits

• Provides essential patient positioning without electrical power
• Continues to function during power outages
• Adjustable height supports nursing procedures and transfers
• Reduces unnecessary bending for caregivers
• Supports comfortable sitting, resting and leg positioning
• Safety rails help reduce the risk of accidental falls
• Lockable wheels allow transportation and secure placement
• Requires less electrical maintenance than a motorised bed
• Suitable for both institutional and supervised home care

Important Safety and Usage Information

• Lock all wheels whenever the bed is stationary.
• Ensure the patient, bedding, tubes and equipment are clear before making adjustments.
• Keep the side rails raised when required by the patient’s care plan.
• Adjust the crank mechanisms slowly and smoothly.
• Never exceed the manufacturer’s specified safe working load.
• Do not sit or stand on a raised backrest or leg section.
• Use a correctly sized medical mattress.
• Patient positioning should follow the instructions of a healthcare professional.
• Inspect the frame, cranks, side rails, wheels and brakes regularly.
• Exact dimensions, adjustment ranges, capacity and accessories vary by manufacturer; verify the selected model before ordering.
