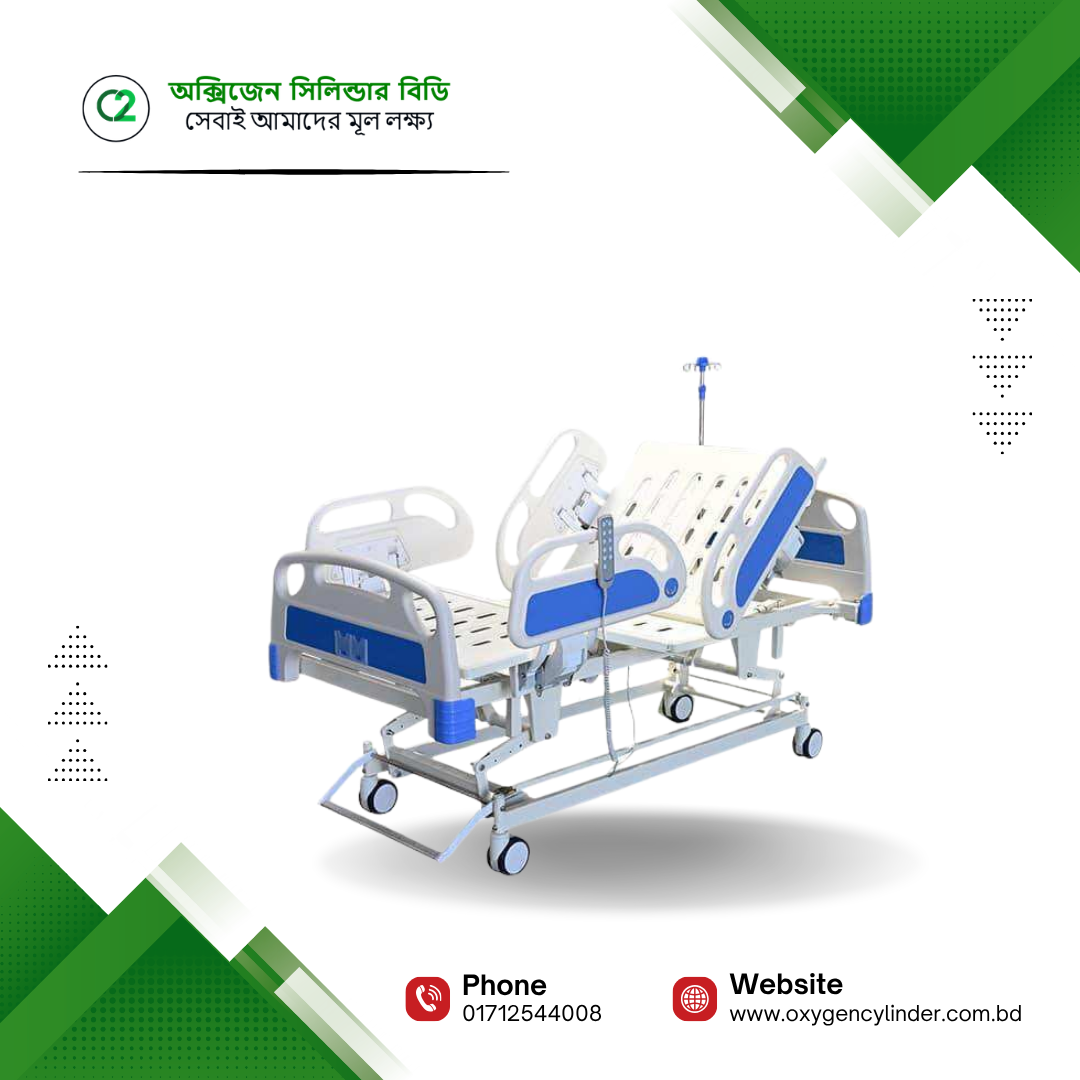

Electric 5-Function ICU Bed with CPR Mood

The Electric Five-Function ICU Bed with CPR Mode is designed for intensive care, emergency response and advanced patient positioning. Its motorised control system allows caregivers to adjust the backrest, knee section, overall bed height, Trendelenburg position and reverse Trendelenburg position with minimal physical effort.

The integrated CPR function rapidly returns the adjustable mattress platform to a flat position during an emergency, helping trained healthcare professionals prepare the patient for cardiopulmonary resuscitation. Depending on the model, CPR activation may be available through an electric button, manual quick-release lever or both.

With its strong steel frame, protective side rails, detachable ABS panels, lockable castor wheels and ICU accessory provisions, this bed is suitable for hospitals, clinics, intensive care units and appropriately equipped healthcare facilities in Bangladesh.

Key Features

• Five independent electric adjustment functions
• Emergency CPR Mode
• Electric or manual CPR quick-release system
• Motorised backrest adjustment
• Motorised knee-rest adjustment
• Electric overall height adjustment
• Trendelenburg positioning
• Reverse Trendelenburg positioning
• Handheld remote or integrated control panel
• Nurse-control panel available on selected models
• Patient-control lockout available on compatible versions
• Strong, medical-grade steel frame
• Durable ABS mattress-platform sections
• Detachable ABS headboard and footboard
• Foldable safety side rails
• Four heavy-duty castor wheels
• Central wheel-locking system
• Battery backup available on selected models
• IV-pole mounting provision
• Drainage-bag hooks
• Protective corner bumpers
• Easy-to-clean construction

Five Electric Functions

1. Backrest Adjustment: Raises or lowers the upper body for sitting, examination, feeding and respiratory positioning.
2. Knee-Rest Adjustment: Elevates or lowers the knees and legs to support clinical positioning and patient comfort.
3. Height Adjustment: Raises or lowers the complete mattress platform for patient transfers, treatment and caregiver access.
4. Trendelenburg Position: Tilts the bed so the patient’s head is lower than the feet when clinically directed.
5. Reverse Trendelenburg Position: Tilts the bed so the patient’s head is higher than the feet when clinically directed.

CPR Mode

The CPR function is designed to return the bed rapidly to a flat, firm position during a cardiac emergency. This enables trained medical personnel to begin resuscitation procedures without waiting for each adjustable section to be lowered separately.

CPR controls and operation vary by model. Staff should receive training and follow the manufacturer’s instructions before using this function.

Additional Information

• Product Name: Electric Five-Function ICU Bed with CPR Mode
• Product Type: Electric Critical-Care Hospital Bed
• Number of Functions: Five
• Operating System: Electric motor and electronic controls
• Primary Adjustments: Backrest, knee rest, height, Trendelenburg and reverse Trendelenburg
• Emergency Function: CPR quick release or one-button CPR Mode
• Frame Material: Heavy-duty steel
• Surface Finish: Medical-grade epoxy or powder coating
• Mattress Platform: ABS or perforated steel panels
• Headboard and Footboard: Detachable ABS panels
• Side Rails: Foldable ABS or aluminium safety rails
• Wheels: Four heavy-duty castor wheels
• Braking System: Central or individual locking, depending on the model
• Typical Overall Length: Approximately 2,000–2,200 mm
• Typical Overall Width: Approximately 950–1,150 mm
• Typical Height Range: Approximately 385–790 mm
• Typical Backrest Angle: Approximately 0–75°
• Typical Knee-Rest Angle: Approximately 0–45°
• Typical Tilt Range: Approximately 0–12°
• Typical Safe Working Load: Approximately 200–250 kg
• Power Supply: AC 220–240V, 50Hz
• Battery Backup: Optional or model-dependent
• Mattress: Included or sold separately
• IV Pole: Included or optional
• Recommended Uses: ICU, CCU, emergency care, hospitals and clinics
• Country of Origin: Varies by manufacturer
• Availability: Subject to current stock in Bangladesh
• Warranty: Confirm the motor, controls, battery and frame warranty with the seller
• Price: Contact the seller for the latest price and delivery charge

Common Package Contents

Package contents may include:

• Electric five-function ICU bed
• Patient handset or control panel
• Nurse-control panel, depending on the model
• Medical mattress
• IV pole
• Drainage-bag hooks
• Detachable headboard and footboard
• Safety side rails
• Power cable
• Backup battery, where included
• User manual

Benefits

• Supports advanced patient positioning
• Allows rapid bed flattening during CPR emergencies
• Reduces manual effort for nurses and caregivers
• Adjustable height supports safer transfers and clinical procedures
• Trendelenburg functions provide additional positioning options
• Safety rails help reduce the risk of accidental falls
• Lockable wheels support secure positioning and transportation
• Battery backup can maintain essential functions during power interruptions
• Easy-to-clean materials support infection-control procedures

Important Safety and Usage Information

• CPR Mode must be operated only by trained personnel.
• Activating CPR Mode prepares the bed for resuscitation; it does not perform CPR.
• Follow current clinical protocols during every medical emergency.
• Lock all castor wheels whenever the bed is stationary.
• Check that the patient, tubes, cables and bedding are clear before adjusting the bed.
• Use Trendelenburg positions only under appropriate clinical direction.
• Keep the side rails raised when required by the patient’s care plan.
• Never exceed the manufacturer’s safe working load.
• Connect the bed to a properly grounded electrical outlet.
• Use suitable voltage protection where electricity fluctuates.
• Test the CPR release and backup battery according to the maintenance schedule.
• Exact dimensions, adjustment ranges, CPR controls and included accessories vary by model; verify them before ordering.
