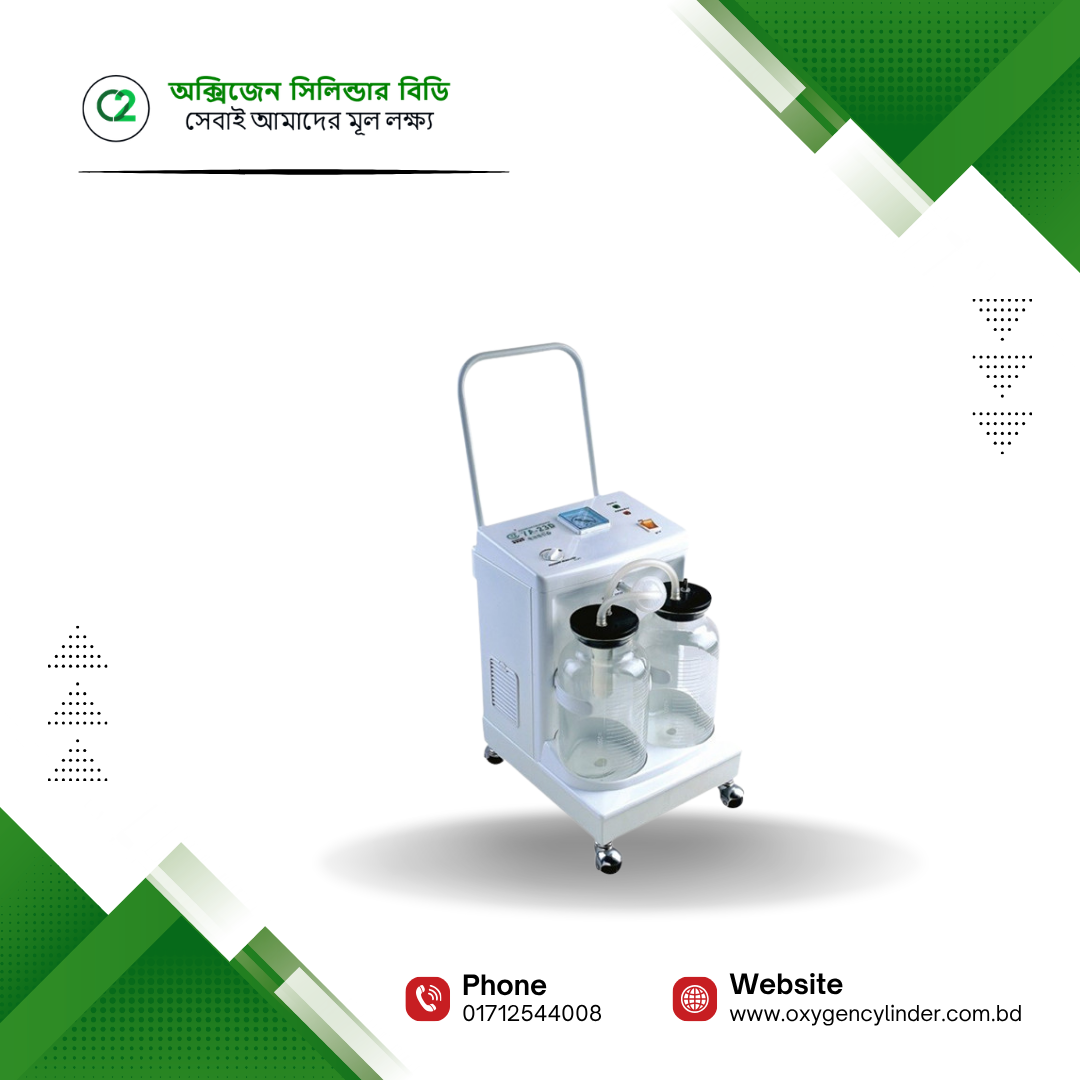

Yuwell 7A-23D Electric Suction Machine
Original price was: ৳ 14,800.00.৳ 13,800.00Current price is: ৳ 13,800.00.
The Yuwell 7A-23D Electric Suction Machine is a high-capacity medical suction apparatus designed to remove phlegm, mucus, blood, pus, and other bodily fluids during clinical procedures and patient care. Its powerful suction performance and dual collection jars make it suitable for hospitals, clinics, operating theatres, emergency departments, and other healthcare facilities in Bangladesh.
The machine incorporates an oil-free piston pump that requires minimal routine maintenance and produces no oil or smoke pollution. Adjustable negative-pressure control allows healthcare professionals to select the appropriate suction level, while hand and foot controls support convenient operation during medical procedures.
Key Features
- Powerful suction rate of 20 litres per minute or more
- Maximum negative pressure of at least 0.09 MPa
- Adjustable vacuum-pressure regulator
- Oil-free and maintenance-friendly piston pump
- Two large-capacity collection jars
- Approximately 2,500 ml capacity per jar
- Hand switch and foot switch operation
- Overflow-protection mechanism
- Backflow-prevention design
- Easy-to-read vacuum pressure gauge
- Low-noise operation
- Durable plastic-panel construction
- Easy to operate, clean and maintain
- Suitable for high-volume clinical suction requirements
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Yuwell |
| Model | 7A-23D |
| Product type | Electric suction apparatus |
| Maximum negative pressure | ≥0.09 MPa or approximately 90 kPa |
| Pumping rate | ≥20 L/min |
| Collection capacity | Two 2,500 ml jars |
| Pump type | Oil-free piston pump |
| Noise level | ≤65 dB(A) |
| Input power | ≤180 VA |
| Power supply | AC 220V ±22V, 50Hz ±1Hz |
| Vacuum adjustment | Stepless adjustable control |
| Operating controls | Hand switch and foot switch |
| Maximum continuous operation | Approximately 30 minutes |
| Continuity rate | Approximately 50% |
| Electrical classification | Class I, Type B |
Common Applications
- Removal of phlegm and respiratory secretions
- Suctioning of blood, pus and other bodily fluids
- Surgical and postoperative procedures
- Emergency and intensive patient care
- Hospital wards and operating theatres
- Clinical and nursing-care procedures
Package Contents
The standard package may include:
- Yuwell 7A-23D electric suction machine
- Two 2,500 ml collection jars
- Suction tubing set
- Bacterial filter
- Foot switch
- Power cable
- User manual
- Suction catheter, depending on the supplier
Additional Information for Customers in Bangladesh
Before ordering, customers should confirm the product’s authenticity, warranty period, included accessories, installation support and availability of replacement filters, tubing and collection jars. The machine requires a properly grounded 220V electrical connection. A suitable voltage stabilizer or backup power supply may be considered where electricity is unstable.
The Yuwell 7A-23D is an intermittent-duty device, with a typical maximum continuous operating time of approximately 30 minutes and a 50% duty cycle. It should not be used in flammable or explosive environments.
Only trained healthcare professionals or properly instructed caregivers should operate this medical device. Use the suction pressure and catheter size prescribed for the patient, follow infection-control procedures, clean reusable components after every use and prevent liquid from entering the pump.
