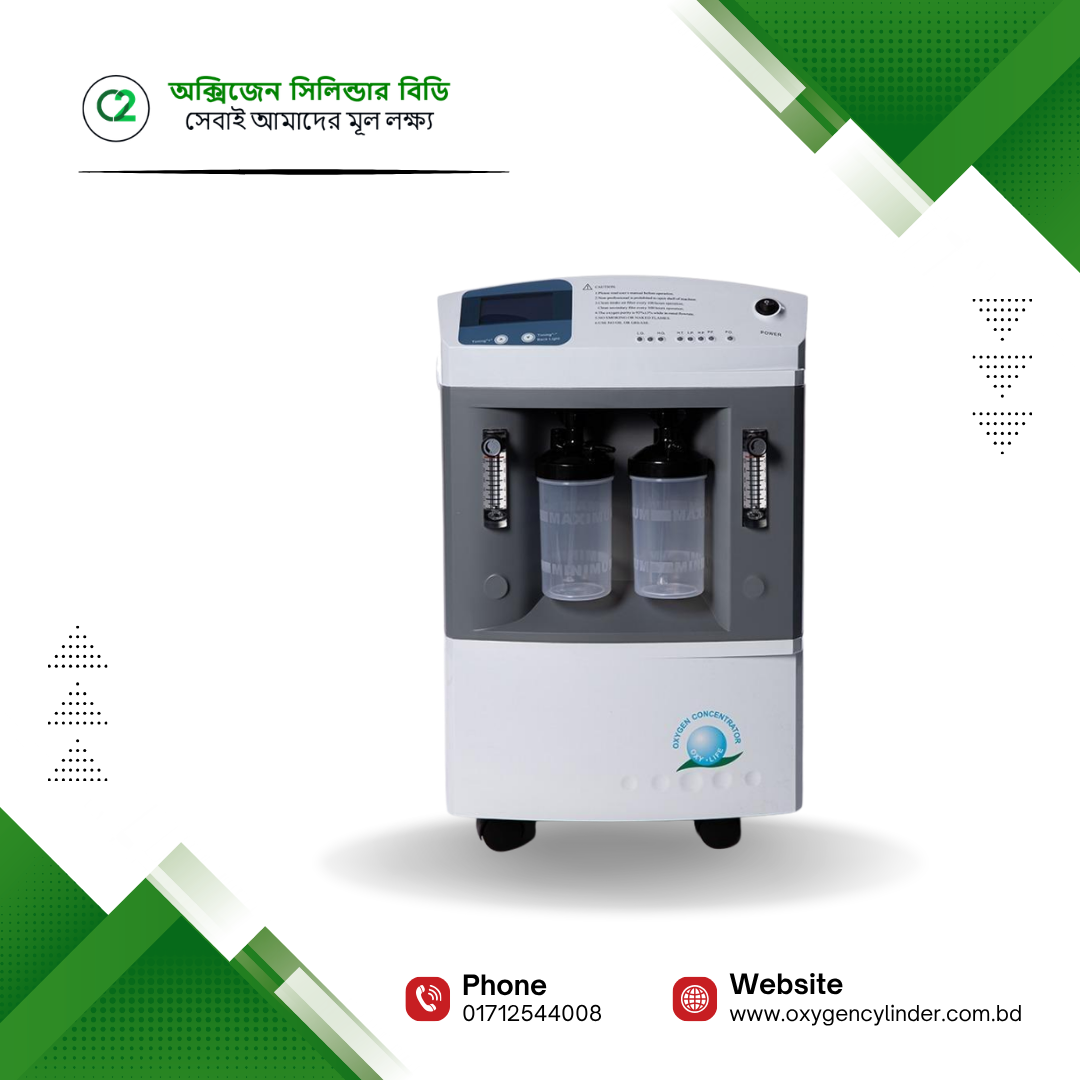

Longfian JAY-10 10L Oxygen Concentrator

The Longfian JAY-10 10L Oxygen Concentrator is a high-capacity machine designed to provide a continuous supply of concentrated oxygen for patients with higher prescribed flow requirements. Using Pressure Swing Adsorption technology, it draws in surrounding air, removes nitrogen and delivers oxygen with a concentration of approximately 93% ±3%.

Its adjustable flow of up to 10 litres per minute makes it suitable for home care, hospitals, clinics, nursing facilities and other appropriate healthcare environments. The machine features an oil-free compressor, molecular-sieve technology, a digital display, humidifier support and multiple safety alarms.

The JAY-10 continuously produces oxygen from room air, removing the need for regular cylinder refilling during normal operation. It is a practical high-flow oxygen solution for healthcare providers and home-care patients in Bangladesh.

Key Features

• Adjustable continuous flow from 0–10 L/min
• Oxygen concentration of approximately 93% ±3%
• High-capacity oxygen delivery
• Advanced Pressure Swing Adsorption technology
• Generates oxygen directly from surrounding air
• Durable oil-free compressor
• High-efficiency molecular sieve
• Digital operating display
• Built-in humidifier-bottle support
• Clear flow meter for easy adjustment
• Power-failure alarm
• High- and low-pressure alarms
• Low-oxygen-concentration warning
• Compressor temperature protection
• Self-diagnostic system with error indication
• Nebulizer function available on selected variants
• Dual-flow outlet available on compatible versions
• Castor wheels for convenient indoor movement
• Designed for extended or continuous operation
• No regular oxygen-cylinder refilling required

Additional Information

• Brand: Longfian
• Model: JAY-10
• Product Type: High-Flow Stationary Oxygen Concentrator
• Oxygen Delivery: Continuous flow
• Flow Range: 0–10 L/min
• Oxygen Concentration: Approximately 93% ±3%
• Outlet Pressure: Approximately 6–10 PSI or 0.04–0.07 MPa
• Power Supply: AC 220–230V, 50Hz
• Power Consumption: Up to approximately 880W, depending on the version
• Net Weight: Approximately 27 kg
• Dimensions: Approximately 365 × 375 × 600 mm
• Compressor Type: Oil-free
• Humidifier Bottle: Supported
• Nebulizer Function: Model-dependent
• Dual-Flow Function: Available on selected models
• Mobility: Equipped with castor wheels
• Recommended Uses: Home care, hospitals, clinics and nursing facilities
• Country of Manufacture: China
• Availability: Subject to current stock in Bangladesh
• Warranty: Confirm the warranty and local service coverage with the seller
• Price: Contact the seller for the latest price and delivery charge

Package Contents

Package contents may vary by supplier but can include:

• Longfian JAY-10 Oxygen Concentrator
• Humidifier bottle
• Nasal oxygen cannula
• Oxygen mask
• Connecting tube
• Air filter
• Power cable
• User manual

Important Safety and Usage Information

• Use supplemental oxygen only according to a qualified healthcare professional’s prescription.
• Never change the prescribed oxygen flow rate without medical advice.
• Confirm that the machine maintains the required oxygen concentration at the prescribed flow before use.
• This machine should not be used as a life-support device unless specifically approved for that purpose.
• Keep a filled backup oxygen cylinder available during power failures or equipment emergencies.
• Place the machine upright in a clean, dry and well-ventilated location.
• Leave adequate space around the air inlet and exhaust.
• Keep the concentrator away from flames, smoking, heat, oil and grease.
• Connect it to a properly grounded electrical outlet.
• Use an appropriately rated voltage stabilizer or power backup where electricity fluctuates.
• A standard low-capacity IPS may not support this machine’s power requirements.
• Clean and replace the filters according to the manufacturer’s instructions.
• Do not divide the oxygen output between two patients unless the model has approved, independently controlled dual-flow outlets.
• Verify the exact model, power consumption, sound level and included accessories before ordering.
