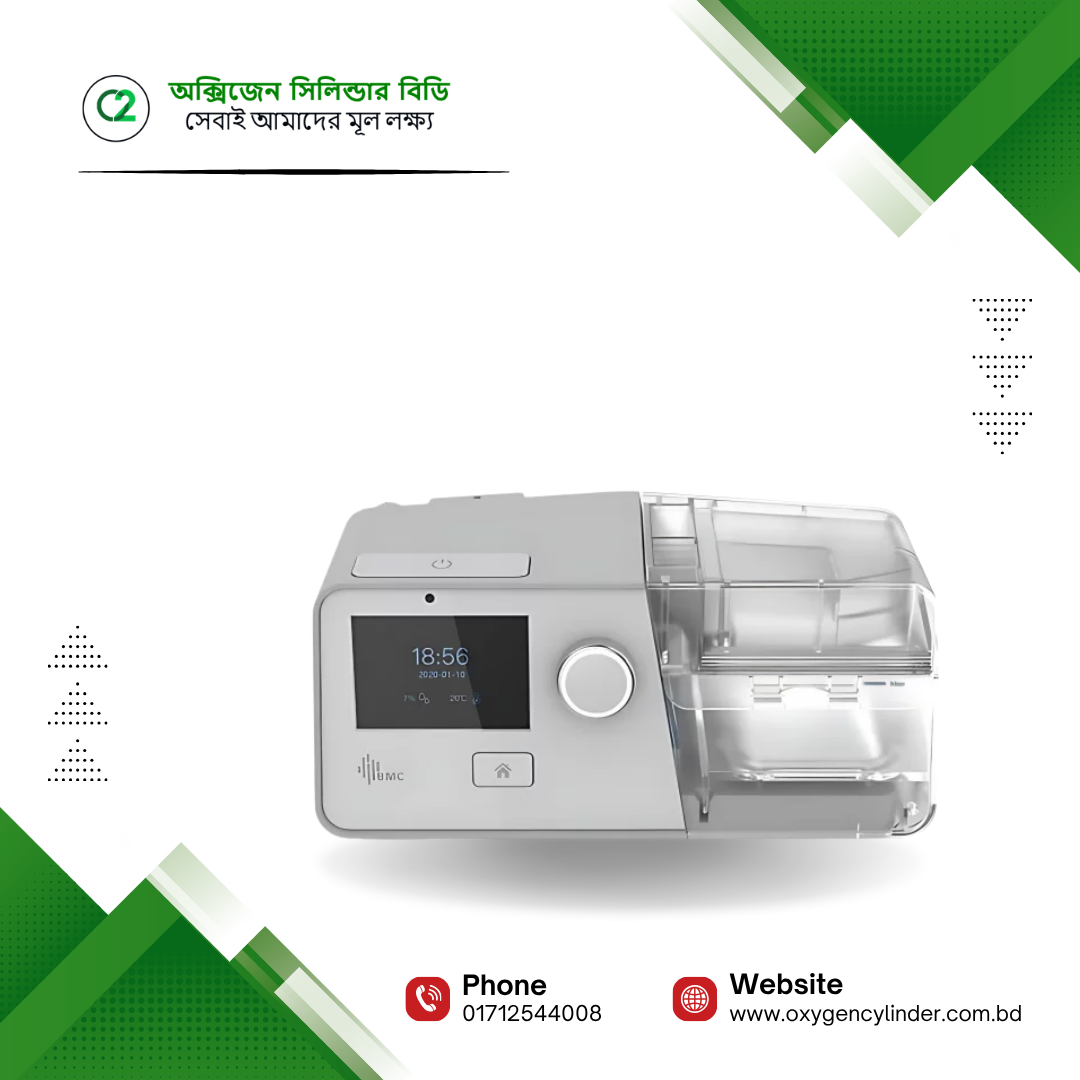

BMC G3 B30VT BiPAP ST Machine

The BMC G3 B30VT is an advanced BiPAP ST machine designed to provide prescribed non-invasive ventilation for adults with obstructive sleep apnea or respiratory insufficiency. It delivers separate inspiratory and expiratory pressure levels, helping support the user’s breathing while reducing the effort required during exhalation.

Its S/T mode responds to the user’s spontaneous breathing and provides a timed backup breath when spontaneous inhalation does not occur within the prescribed interval. The Target Tidal Volume function can automatically adjust inspiratory pressure support to help maintain the clinician-set ventilation target.

The machine supports CPAP, S, AutoS, T, and S/T therapy modes, offering flexibility for different clinical requirements. An integrated heated humidifier, adjustable ramp, quiet operation, and user-friendly 3.5-inch display help make regular therapy more comfortable and manageable.

The BMC G3 B30VT is intended for prescription use in homes, hospitals, clinics, and other healthcare environments in Bangladesh.

Key Features

• Bi-level positive airway pressure therapy
• S/T mode with timed backup breathing support
• Target Tidal Volume function
• Maximum IPAP pressure of up to 30 cm H₂O
• Separate inspiratory and expiratory pressure settings
• CPAP, S, AutoS, T, and S/T therapy modes
• Automatic pressure adjustment in AutoS mode
• Adjustable backup respiratory rate
• Integrated heated humidifier
• Preheating function for comfortable humidification
• Ramp time adjustable from 0–60 minutes
• Reslex pressure-relief technology
• Adjustable rise time
• Automatic Start and Stop functions
• 3.5-inch colour TFT display
• Real-time therapy information
• SD card therapy-data recording
• iCode and QR-based compliance reporting
• High- and low-pressure alarms
• Low respiratory-rate warning
• Tube-disconnection alert
• Quiet operating sound below 26 dB at specified test conditions
• Optional heated tubing, PM2.5 filter, Wi-Fi, and cellular module
• Suitable for prescribed home or institutional therapy

Therapy Modes

• CPAP Mode: Delivers one continuous prescribed pressure throughout the breathing cycle.
• S Mode: Responds to spontaneous inhalation and exhalation using separately prescribed IPAP and EPAP pressures.
• AutoS Mode: Automatically adjusts IPAP and EPAP when obstructive breathing events are detected.
• T Mode: Delivers timed inhalation and exhalation according to prescribed settings.
• S/T Mode: Supports spontaneous breathing and provides timed backup breaths when required.

Technical Specifications

• Brand: BMC
• Model: G3 B30VT
• Product Type: BiPAP ST/BPAP non-invasive ventilation machine
• Intended Users: Adults
• Therapy Modes: CPAP, S, AutoS, T, and S/T
• CPAP Pressure Range: 4–20 cm H₂O
• IPAP Range: 4–30 cm H₂O
• EPAP Range: 4–25 cm H₂O
• Pressure Adjustment: 0.5 cm H₂O increments
• Ramp Time: 0–60 minutes
• Humidifier: Integrated heated humidifier
• Humidifier Settings: Off, Auto, and levels 1–5
• Water-Chamber Capacity: Approximately 360 ml
• Display: 3.5-inch TFT screen
• Sound Pressure Level: Below 26 dB at 10 cm H₂O
• Data Storage: SD card
• Dimensions: Approximately 265 × 145 × 114 mm
• Weight: Approximately 1.7 kg
• Power Input: 100–240V AC, 50/60Hz
• Protection Rating: IP22
• Standard Tube Length: Approximately 1.83 metres
• Optional Accessories: Heated tube, PM2.5 filter, Wi-Fi kit and cellular module

Product Benefits

• Provides two pressure levels for more comfortable assisted breathing
• Offers backup breaths when spontaneous breathing is insufficient
• Supports a clinician-selected tidal-volume target
• Provides multiple therapy modes for different prescribed requirements
• Heated humidification helps reduce dryness and discomfort
• Adjustable ramp allows a gentler beginning to therapy
• Quiet operation helps reduce sleep disturbance
• Therapy reports assist healthcare professionals in monitoring treatment
• Wide-range power input is compatible with Bangladesh’s mains electricity
• Suitable for prescribed therapy at home or in healthcare institutions

Additional Information for Customers in Bangladesh

• Price, stock, warranty, delivery charges, and after-sales service may vary by supplier.
• Confirm the exact model number as G3 B30VT, because other BMC G3 models provide different therapy modes and maximum pressures.
• Ask the supplier to demonstrate the machine and verify its serial number before purchase.
• Confirm whether the supplied package includes a mask, standard tube, heated tube, humidifier chamber, SD card, filters, carrying bag, power adapter, and user manual.
• A suitable mask must be selected according to the patient’s prescription, face shape, and ventilation requirements.
• Wi-Fi, cellular connectivity, heated tubing, and PM2.5 filters may be optional and should be confirmed before ordering.
• Confirm the availability of replacement masks, tubing, filters, humidifier chambers, and qualified servicing in Bangladesh.
• Use distilled or properly purified water in the humidifier whenever possible.
• An appropriate backup power solution may be considered in areas with frequent electricity interruptions, but compatibility must be confirmed with the supplier or manufacturer.
• Package contents and specifications may vary according to the regional version and available production batch.

Important Medical and Safety Information

• This is a prescription medical device and must be configured by a qualified physician or respiratory professional.
• Do not select or change IPAP, EPAP, backup rate, tidal volume, inspiratory time, or other clinical settings without professional guidance.
• The machine is designed for adult use and is not intended as a life-support ventilator.
• Patients who depend on continuous ventilation should not rely on this device as their only respiratory support.
• Do not use supplemental oxygen with the machine unless prescribed and properly connected by a qualified professional.
• Keep the device and oxygen equipment away from flames, smoking materials, heat, oil, and other ignition sources.
• Place the device on a stable surface with its air inlet unobstructed.
• Clean the mask, tubing, humidifier chamber, and filters according to the manufacturer’s instructions.
• Seek medical assistance if breathing difficulty, chest discomfort, severe bloating, unusual sleepiness, or other concerning symptoms occur during therapy.
